De SQ.line® KERRISON botpunches

Ontworpen om te voldoen aan de strenge eisen van de neurochirurgie.

Usage of the SQ.line® KERRISON while cutting  away small sections of bone
Two illustrations of a hand showing different zones of hand fatigue, highlighted in lila color

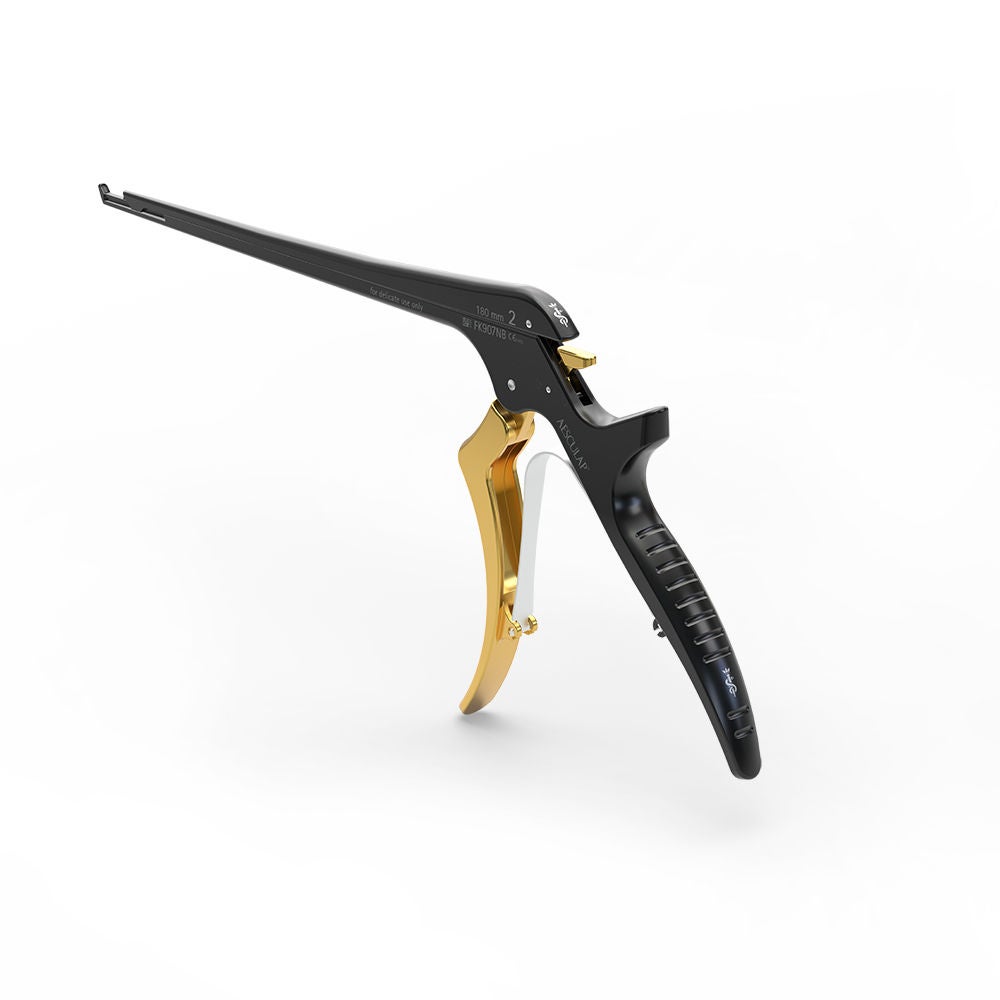

The SQ.line® KERRISON bone punches
Zoomed SQ.line® KERRISON bone punches with drops of water

Contacteer ons!

Heb je een vraag of wil je meer weten over SQ.line® KERRISON botpunches?

Contactformulier

SQ.line® KERRISON Bone Punches

SQ.line® draagt zijn naam niet voor niets: SQ staat voor “Such Quality!” en verwijst ook naar de voordelen van het instrument: gemak (“So Qonvenient!”), consistentie (“So Qonsistent!”), comfort (“So Qomfortable!”) en reinheid (“So Qlean!”). Robuuste prestatiesVerbeterde ergonomieSnelle en intuïtieve montage en demontageReinigingsvalidatie zonder voorreinigingErvaar een nieuwe kwaliteit van neurochirurgische apparatuur met de SQ.line® KERRISON botpunches - robuust, duurzaam, functioneel en ergonomisch.

Klassieke KERRISON botpunch

Al meer dan 100 jaar een klassieker. Het elegante, slanke design en de snijprestaties van de KERRISON punch hebben een blijvende indruk gemaakt op onze klanten. Uitstekende snij-eigenschappenEffectieve botverwijderingSnelle identificatie van dunne voetplaten door goudkleurig distaal uiteindeErgonomisch designRendabel met een lange levensduur

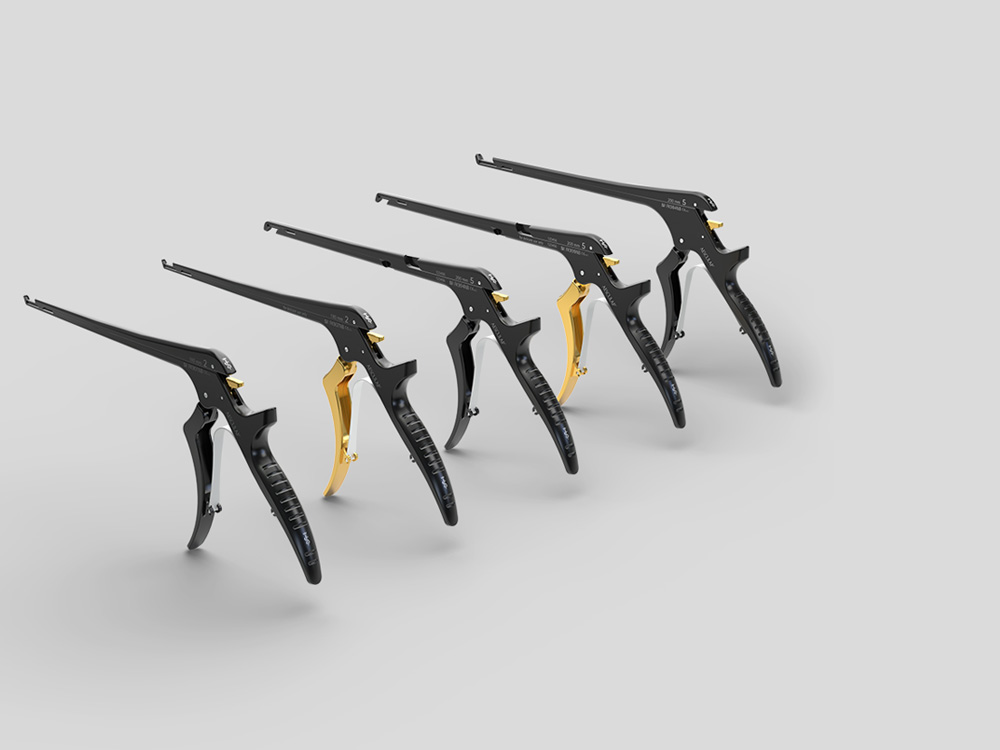

Speciale KERRISON botpunches

Gebogen, bajonetvormig, extra lang, middelgroot of met een grote bekLaminectomiepunches, met tot 66% grotere bekopening. Deze punches worden gebruikt voor spinale neurochirurgische procedures, in het bijzonder voor laminectomieIn één enkele stap kan efficiënt meer botweefsel worden verwijderdLeverbaar in 3 versies: niet-demontabel, demontabel en demontabel of gecoatBreedte 2mm tot 6mm in 130 graden/40graden bek opwaarts gericht Extra lang, lengte 280mm. Als de situatie extra lengte vereist, heeft deze lange punch voldoende reserve om de afstand te overbruggenLeverbaar in 3 varianten: niet-demontabel, demontabel en demontabel of gecoatBekhoek 130 graden opwaarts openendBreedte 2mm tot 5mm

KAIRison pneumatische punch

Voorkomt peroperatieve pijnen van de gebruiker door pneumatische botpunch.

Referenties

  1. Usability test with neurosurgeons. The usability test with neurosurgeons was performed to validate multiple customer requirements in terms of the performance and the ergonomics of SQ.line® KERRISON. The test was performed with 12 neurosurgeons within a simulated clinical environment. The performance and the ergonomic properties were rated positive.
  2. Handle comfort evaluation report. The SQ.line® KERRISON handle was compared in terms of comfort during use to its predecessor and one of its competitor’s handle. It is based on the visualization of prevailing surface pressure distributions during the actuation by means of pressure measuring foil. The SQ.line® KERRISON showed smaller areas of high surface pressure and a more homogeneous pressure distribution.
  3. Gloss value measurement. The gloss values of two new and five aged SQ.line® KERRISONs were measured on three defined areas from two different angles each. The results were compared to the values of uncoated Aesculap KERRISONs. The processing had no significant influence on the reflection behavior. The Noir® plus coating reduced reflections on the slider by 70% to 86%, on the main part by 47% to 63% and on the handle by 19% to 76% depending on the direction of measurement.
  4. Jamming test. Five samples of three different SQ.line® KERRISONs and previous Aesculap KERRISONs were tested on lamb spine with 50 repeated punches. The SQ.line® KERRISON showed no jamming for the duration of the test.
  5. Usability test with CSSD and OR personnel. The usability test with CSSD and OR personnel was performed to validate multiple customer requirements in terms of the reprocessing and handling of the upwards cutting SQ.line® KERRISON. Ten people with an average CSSD experience of more then five years where interviewed. The suitability for reprocessing and the handling were rated positive.
